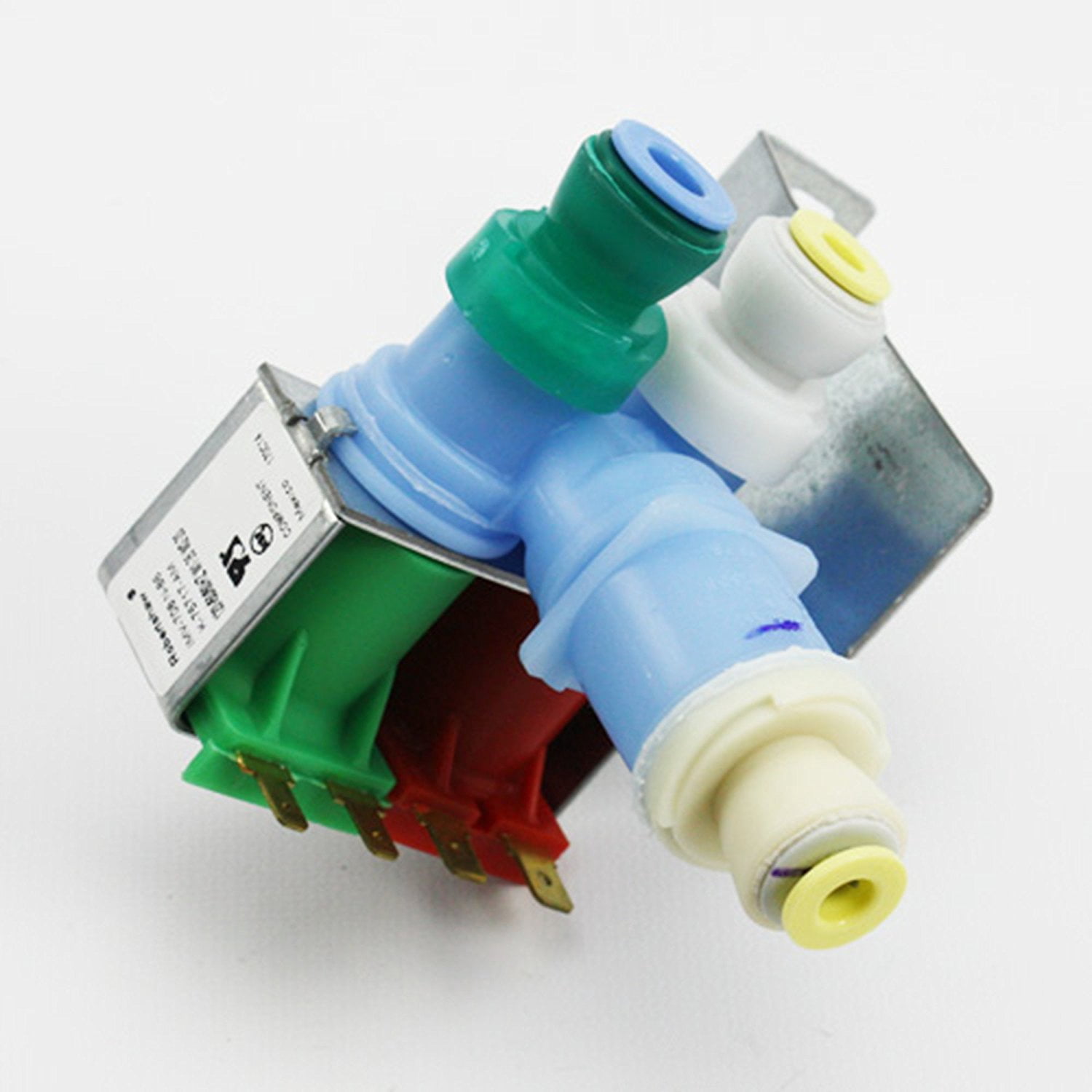

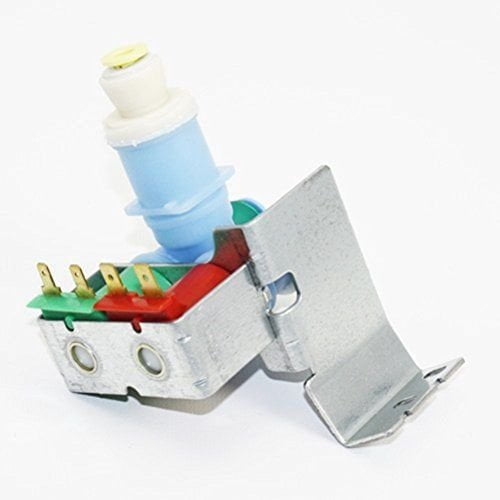

IMV708 W10408179 4389177 Whirlpool Kitchenaid Kenmore Refrigerator Water Valve by Robertshaw

<!-- x-tinymce/html --><p>The Robertshaw® S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.<br><br></p> <p>Features and Benefits</p> <ul> <li>Direct acting armature provides high flow capacity with minimum power requirements</li> <li>Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant</li> <li>Unique armature and seat design reduce unwanted particles from entering the armature area</li> <li>Armature is designed with clearances which minimize the possibility of jamming due to foreign materials</li> <li>Bodies are made of polypro which provides high resistance to corrosion and mineral deposits</li> <li>Suitable for applications using water at temperatures up to 160°F (71°C)</li> </ul> <table class="SpecTable"> <tbody> <tr> <td>Series Application</td> <td>Residential Ice Machine Water Valve N-86 Dual</td> </tr> <tr> <td>Electrical Rating</td> <td>120V AC, 50/60 Hz, 35W|120V AC, 50/60 Hz, 20W</td> </tr> <tr> <td>Body Material</td> <td>Polypro</td> </tr> <tr> <td>Inlet Size</td> <td>1/4" flare, loxit or compression</td> </tr> <tr> <td>Operating Pressure</td> <td>20 PSI to 120 PSI</td> </tr> <tr> <td>Outlet</td> <td>7/16" 20 UNF|1/2" 20 UNF</td> </tr> <tr> <td>Terminals</td> <td>1/4" Male|3/16" Male</td> </tr> <tr> <td>Flow Rate</td> <td>130 CC in 7.5 seconds, 22-38 CC per second</td> </tr> </tbody></table>
